This model is a variant of HWAM’s new series of wood-burning stoves, HWAM 4600. If you are looking for a wood-burning stove that offers an even better view of the flames and at the same time radiates elegance and humility for your interior design, then the 4660 model may be the right one for you. With the optional installation of heat-storing stone, the heat is radiated evenly over a period of several hours.
|HWAM Autopilot IHS:||Yes|
|AutomaticTM nominal heat output (kW):||7.0|
|IHSTM nominal heat output (kW):||8.0|
|Smokeoutlet, Ø (mm):||150|
|Chimney draught, recommended (Pa):||12|
|Combustion chamber width (cm):||49|
|Weight with soapstone cover (kg):||224|
|Heat-retaining stones (kg):||45|
|Weight with sandstone cover (kg):||209|
|Outlet connection, meassurements, Autopilot/Autopilot IHS|
|Connection from floor, top (cm):||111,4|
|Combustion air system|
|Combustion air system can be mounted, back (Ø 100 mm):||Yes|
|Combustion air system can be mounted, floor (Ø 100 mm):||Yes|
|Distance to inflammable materials|
|Distance to inflammable materials, back (cm):||20|
|Distance to inflammable materials, side(cm):||35|
|Distance to inflammable materials, front(cm):||75|
|Distance to inflammable materials, corner location (cm):
All dimensions in connection with corner installation are only recommendations. Contact your chimney sweep for a clarification.
|Distance to furnishing in front (cm):||130|
|Efficiency, gross/net (%):||80/81|
|EN 13240 (Europa):||Yes|
|Art. 15a (Austria):||Yes|
|NS 3058/3059 (Norway):||Yes|
|BImSchV Stufe 2:||Yes|
HWAM 4660m – modern door.
HWAM 4660c – classic door.

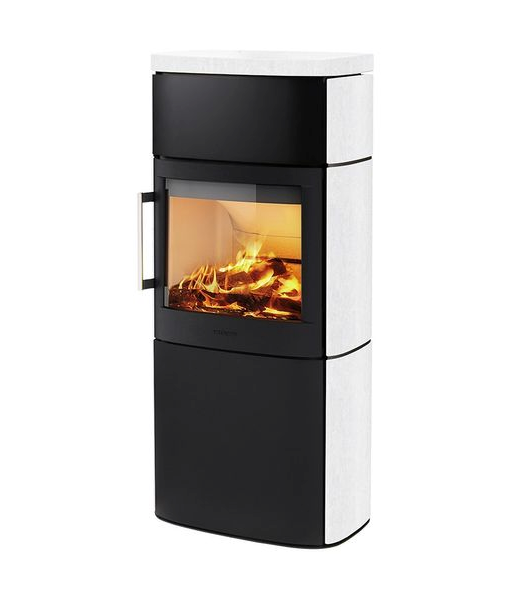

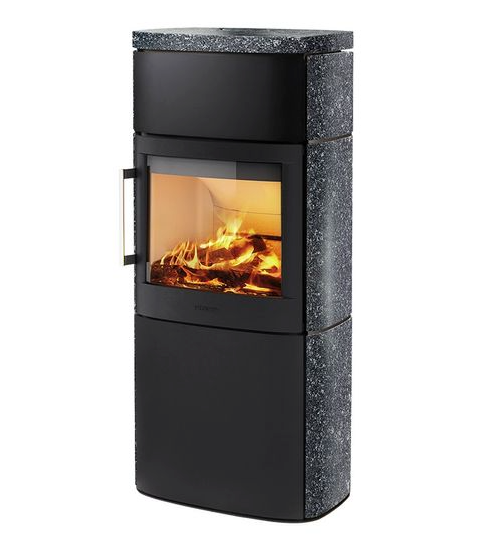

HWAM 4660c – with soapstone or sandstone cover
HWAM 4660m – with soapstone or sandstone cover
You can also order the stove with an exclusive San Sebastian stone or with Gray Sandstone.
Use your phone or tablet to control the temperature in the room
HWAM’s SmartControl™ electronic air regulation gives you a sublime level of comfort and goes easy on the environment and on your pocket. But it’s not just that – at the price of a wood-burning stove, you also get an engineer a personal firing aid right in the middle of your living room!
The “HWAM SmartControl” app allows you to easily set up your desired room temperature on a mobile telephone or tablet – and the app even reminds you when it’s time to fill up with firewood again. The only thing you have to do yourself is light the fire and close the door.
The system will take care of the rest for you, so you can relax, kick back and relish the flames and the cosy heat.
This is how easy it is
Light the fire as usual
With HWAM SmartControl you light the fire as you would with any other stove. No changes here.
Set the desired temperature level in the room
Use the app on your phone or tablet to set the room temperature level with the push of a button. The solution allows you to quickly and easily control how hot it is in the room.
Get a reminder when you need to add more firewood
The app will tell you when it’s time to fill up the stove with more firewood. This way you don’t have to constantly keep an eye on the fuel level in the stove – HWAM SmartControl does that for you.
Autopilot – £2,129.16 exc VAT
Smart Control – £2,712.50 exc VAT
